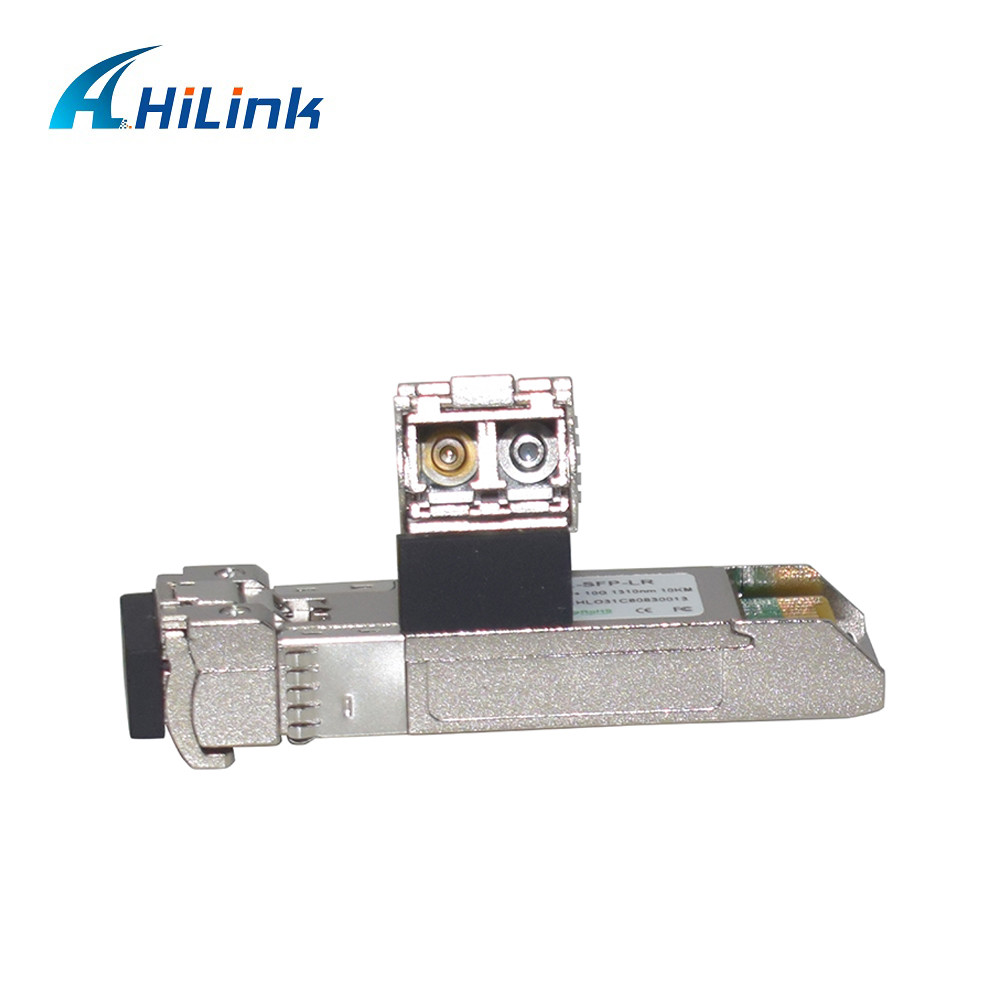

SFP+ 10G SMF 1310nm 10KM LC Duplex DDM Single Mode SFP+ Module
Hilink's HLSP311XL-C(I)D10 Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single-Mode fiber, and it can support data- rate from 9.95Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the SFP+ MSA.
They are compliant with SFF-843 1 ,SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication.
| Item No. | SFP-10G-LR | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10KM |
| Interface | LC duplex | Optical Components | DFB |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -7~+0.5dBm | Receiver Sensitivity | <-14.4dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
-
Hot Pluggable SFP
-
1310nm DFB-LD Transmitter
-
Data transfer rate: 10.3Gbps
-
Distance up to 10km
-
Single 3.3V Power supply and TTL Logic Interface
-
Duplex LC Connector
-
Compliant with MSA SFF-8431, IEEE 802.3ae
-
Digital Diagnostic Monitoring Function
-
Operating Temperature: 0-70℃
Applications
-
10GBASE-LR at 10.31Gbps
-
10GBASE-LW at 9.95Gbps
-
10G Fiber Channel
-
Other Optical Link
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
