Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.
These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.
Quick detail:
Configuration Type: 1 : 8
Package Style: Mini Steel Tube
Connector: SC/APC
Fiber Type: Singlemode
Operating Wavelength: 1260-1650nm
Pigtail Diameter: 0.9mm tight buffer
Pigtail Length: 1M, 1.5M or customized
Operating Temperature:-40~75°C
Storage Temperature:-45~85°C
Features:
1. low PDL
2. Low insertion loss
3. High reliability
4. Compact design
5. Good channel-to-channel uniformity
6. Compliance with RoHS
7. Customized packaging and configuration
Applications
1．FTTX Systems
2．LAN, WAN and metro networks
3．Analog/Digital passive optical networks
4．CATV networks
5．Other applications in fiber optic systems
Parameters
| Product Model | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Wavelength | 1206-1650nm |
| Insertion loss(db) | 3.6 | 7.2 | 10.2 | 13.5 | 16.2 | 20.5 | 3.8 | 7.5 | 10.7 | 14 | 17 |
| Uniformity(db) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 0.6 | 1 | 1.2 | 1.5 | 1.8 |
| PDL(db) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Directivity(db) | 55 |
| Reflection loss(db) | 55 |
| Operating temperature | -40~85℃ |
Order Information
| PLC | Port Configutation | Package Style | Fiber Diameter
(Input/ Output) | Connector
(Input/Output) | Pigtail Length |
| PLC=PLC Splitter | 102=1×2 | ST=Steel tube, bare fiber | 25=250μm | NO=None | 15=1.5m |
| | 104=1×4 | MM=Mini module | 90=900μm | SCA=SC/APC | 20=2.0m |
| | 108=1×8 | FO=With fan-out | 20=2.0mm | SCU=SC/UPC | 30=3.0m |
| | 116=1×16 | ABS=Pigtailed ABS box | 30=3.0mm | LCA=LC/APC | XX=Customized |
| | 132=1×32 | MP=Mini plug-in type | | LCU=LC/UPC | |
| | 164=1×64 | LGX=Standard LGX | | FCA=FC/APC | |
| | 202=2×2 | TR=Mounted on a Fiber Splice Tray | | FCU=FC/UPC | |
| | 204=2×4 | 1U=1U 19” rack mount chassis | | STA=ST/APC | |
| | 208=2×8 | | | STU=ST/UPC | |
| | 216=2×16 | | | X=Customized | |
| | 232=2×32 | | | | |
| | 264=2×64 | | | | |

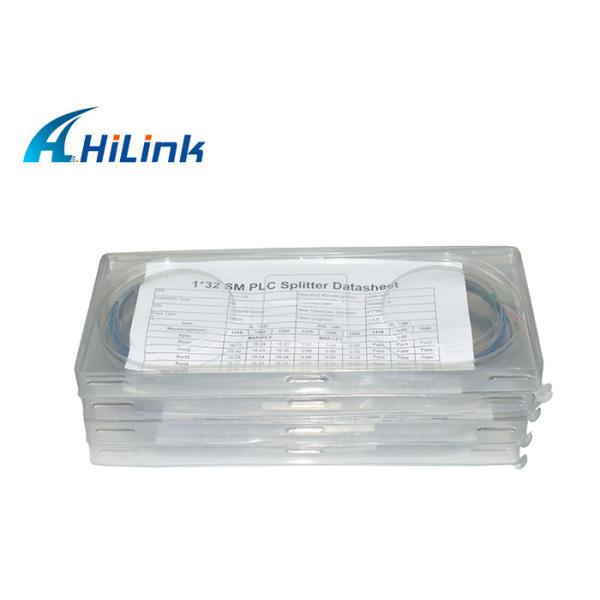

Detailed Images
